Click on image for more details.
Features

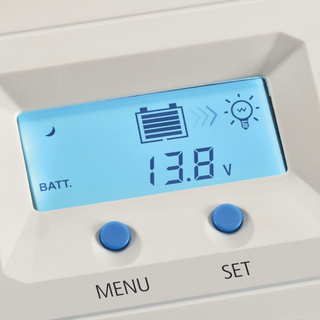

Digital L.E.D screen
Displays battery voltage, charging current, charging capacity, fault codes and more

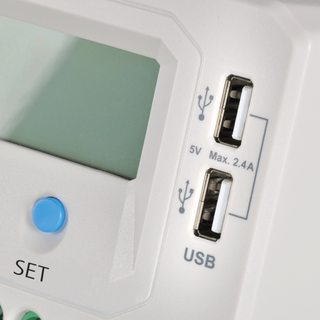

Dual USB ports
5V 2.4A USB ports for powering direct from controller
Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings
Low voltage disconnect
Set the disconnect voltage point to best suit your application, protecting your battery from over discharge

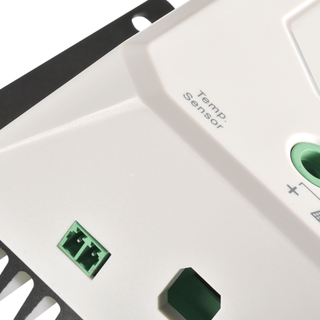

Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection.
Specifications
INPUT: 12V or 24V
MAX INPUT: 50VDC, 60A
MAX CHARGE: 60A
MAXIMUM PANEL SIZE: 720W 12V (360W 24V)
BATTERY: 12V or 24V
CHARGE CONTROL 12V
* 4-stage charging =12v
bulk = 14.0v
absorption = Gel-14.2v, AGM-14.4v, Wet-14.7v
Equalisation = AGM 14.6v, WET 14.8v
Float = 13.8v
CHARGE CONTROL 24V
* 4-stage charging =24v
bulk = 28.0v
absorption = Gel-28.4v, AGM-28.8v, Wet-29.4v
Equalisation = AGM 29.2v, Wet 29.6v
Float = 27.6v
L.V.D. DISCONNECT:
12V: DEFAULT =11.1V, USER SET 9-17V
24V: DEFAULT =22.2V, USER SET 18-34V
L.V.D. RECONNECT:
12V: DEFAULT 12.6V, USER SET 9-17V
24V: DEFAULT 25.2V, USER SET 18-34V
APPPROVALS: EMC
IP RATING: IP22
