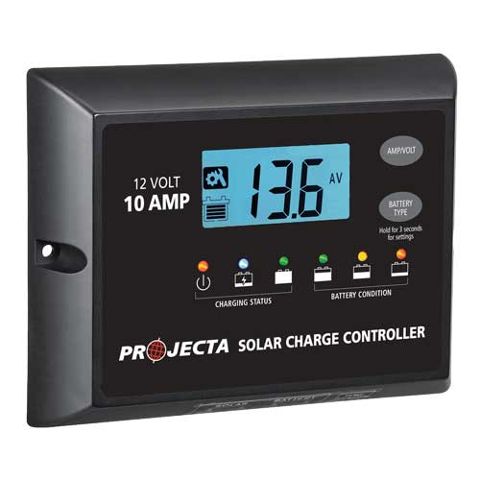

Automatic 12V 10A 4 Stage Solar Charge Controller(

Features

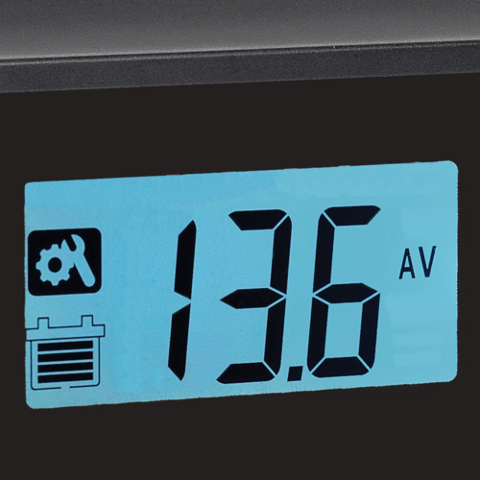

Digital L.E.D screen
Displays battery voltage, charging current, charging capacity, fault codes and more

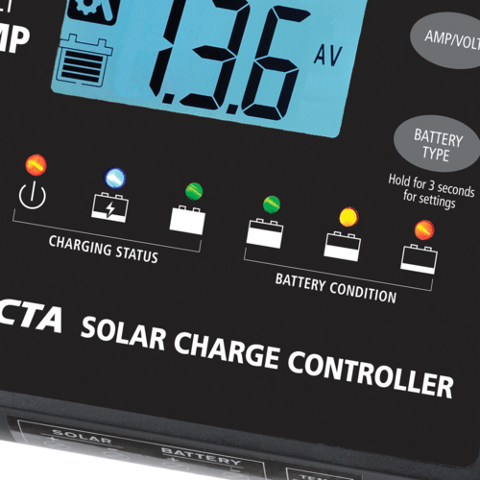

L.E.D charge indicator
Displays quick reference to charge status and battery condition

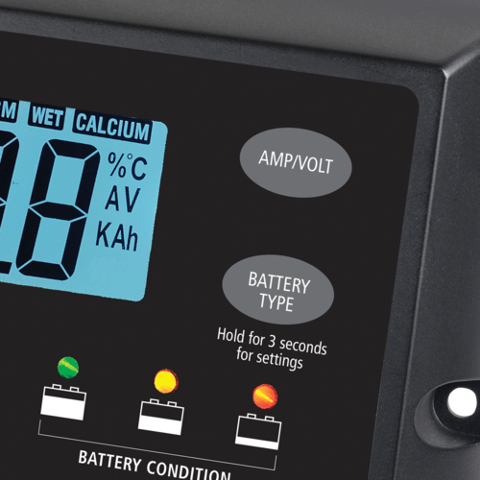

Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel
Sealed electronics

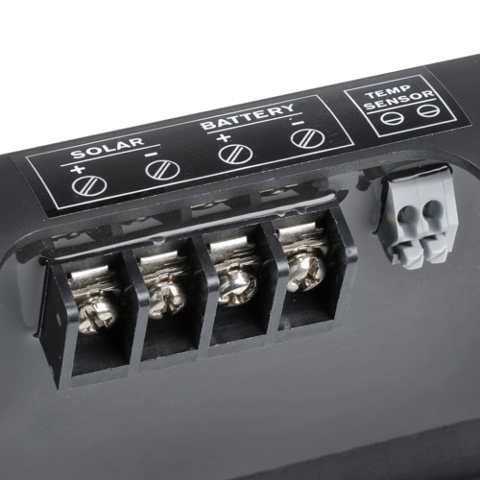

Conformal coated circuit board and plated terminals protect controller from the elements

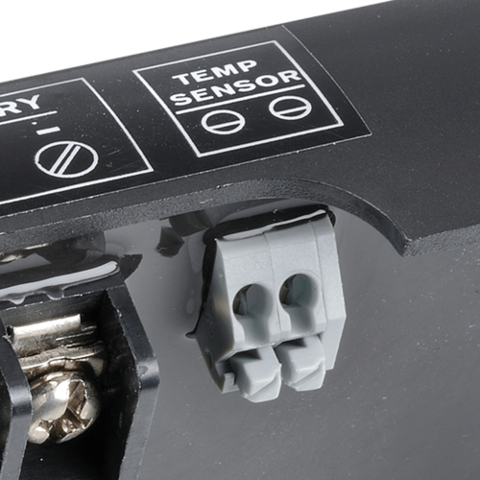

Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available

Specifications

INPUT: 12V
MAX INPUT: 25VDC, 10A
MAX CHARGE: 10A
MAXIMUM PANEL SIZE: 120W 12V
BATTERY: MUST BE 12V

CHARGE CONTROL
* 4-stage charging =12v
bulk = 14.0v
absorption = Gel-14.1v, AGM-14.4v, Wet-14.7v, Calcium 14.9v
Equalisation = 15.5v
Float = 13.6v

APPPROVALS: EMC
IP RATING: IP22
