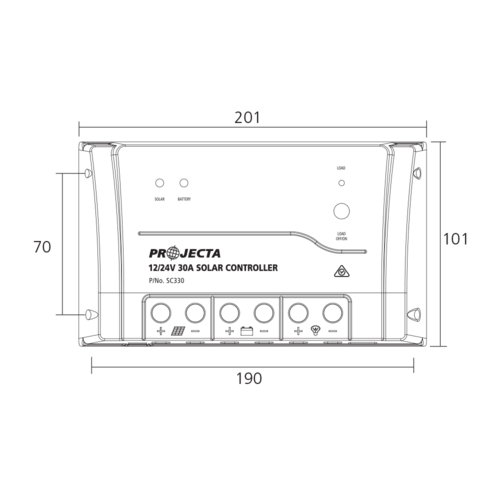

Click on image for more details.
Features
Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, AGM or Gel, or user settings
L.E.D status indicators
Displays quick reference to charge and battery status
Manual load control
Allows user to switch the DC load on/off from the controller itself
Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available
Low voltage disconnect
Set the disconnect voltage point to best suit your application, protecting your battery from over discharge
Specifications
INPUT: 12V or 24V
MAX INPUT: 50VDC, 30A
MAX CHARGE: 30A
MAXIMUM PANEL SIZE: 360W 12V (180W 24V)
BATTERY: 12V or 24V
CHARGE CONTROL 12V
* 4-stage charging =12v
bulk = 14.0v
absorption = Gel-14.2v, AGM-14.4v, Wet-14.6v
Equalisation = AGM 14.6v, WET 14.8v
Float = 13.8v
CHARGE CONTROL 24V
* 4-stage charging =24v
bulk = 28.0v
absorption = Gel-28.4v, AGM-28.8v, Wet-29.2v
Equalisation = AGM 29.2v, Wet 29.6v
Float = 27.6v
L.V.D. DISCONNECT:
12V: DEFAULT =11.1V, USER SET 9-17V
24V: DEFAULT =22.2V, USER SET 18-34V
L.V.D. RECONNECT:
12V: DEFAULT 12.6V, USER SET 9-17V
24V: DEFAULT 25.2V, USER SET 18-34V
STAND-BY CURRENT: 23.4mA
APPPROVALS: EMC
