Automatic 12V 15A 4 Stage Solar Charge Controller

Features

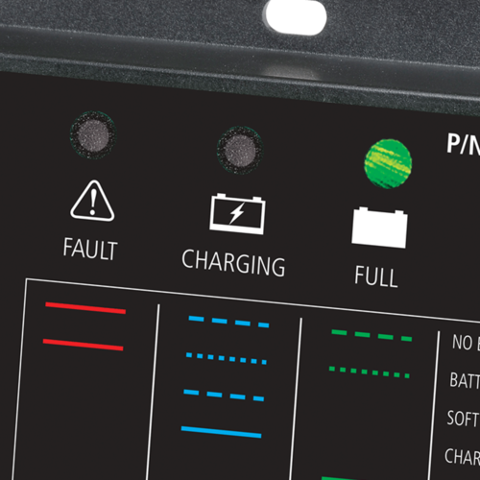

L.E.D charge Indicator
Displays quick reference to charge status of the battery

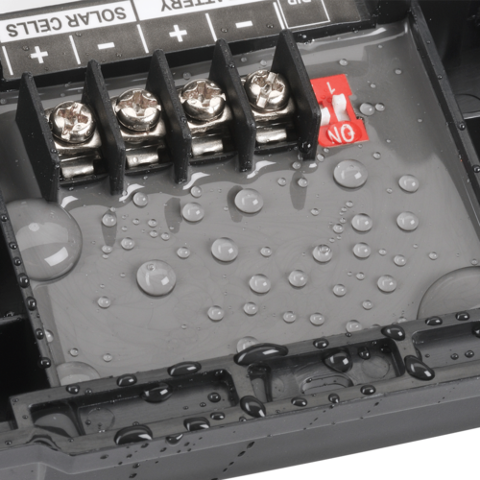

Sealed electronics
Potted circuit board and plated terminals protect controller from the elements
Ease of connection
Plated screw termination and quick reference label

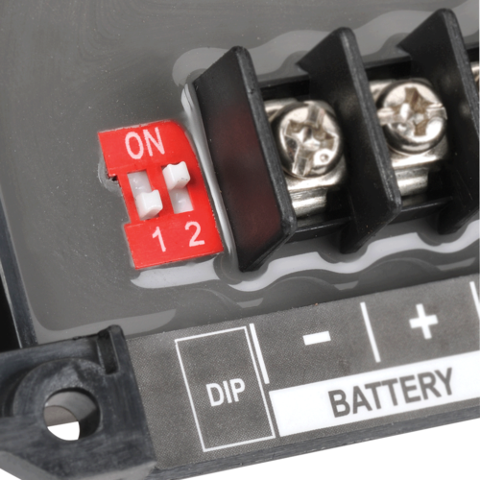

Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel

Specifications

INPUT: 12V
MAX INPUT: 25VDC, 15A
MAX CHARGE: 15A
MAXIMUM PANEL SIZE: 180W 12V
BATTERY: MUST BE 12V

CHARGE CONTROL
* 4-stage charging =12v
bulk = 14.0v
absorption = Gel-14.1v, AGM-14.4v, Wet-14.7v, Calcium 14.9v
Equalisation = 15.5v
Float = 13.6v

APPPROVALS: EMC
IP RATING: IP65
