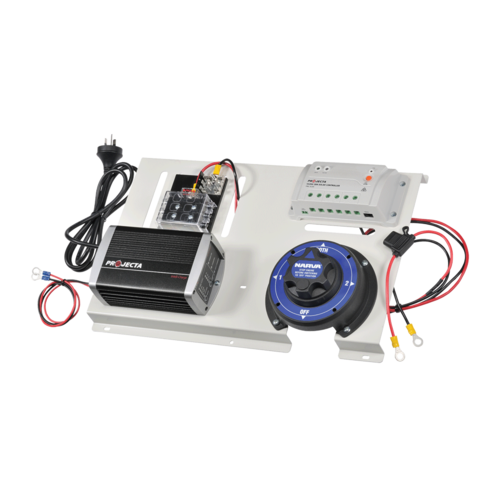

12V 7A Power Management Board

Features

The ideal power management solution for camper trailer and caravan manufacturers looking for a pre-built power board that utilises the latest technology.

With ease of fitment, the unit is pre-wired enabling a quick and professional installation.

FEATURES

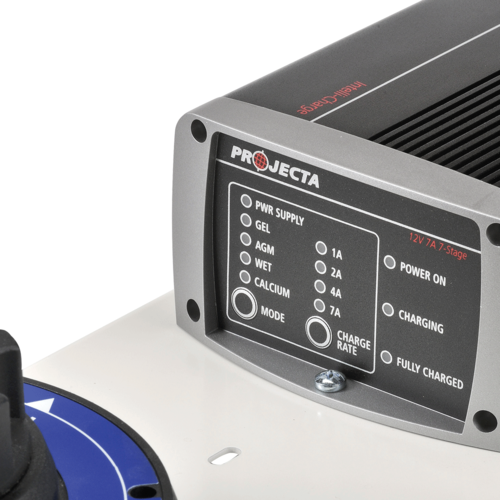

7 stage charger
A sophisticated 7A automatic charger that features multi-chemistry selection and adjustable output to match your battery type

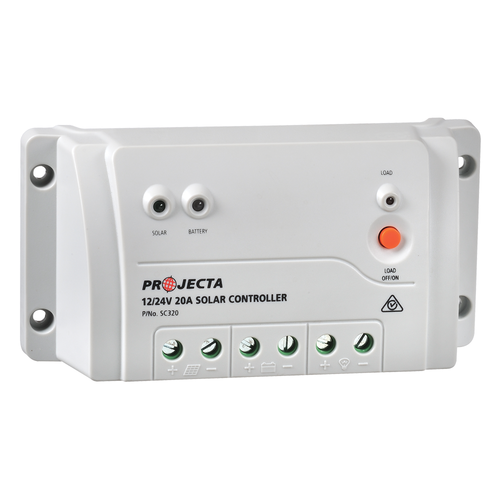

4 stage solar controller
An intelligent 20A controller ideal for managing solar panels producing up to 240W. Features manual load control along with a temperature sensor input option

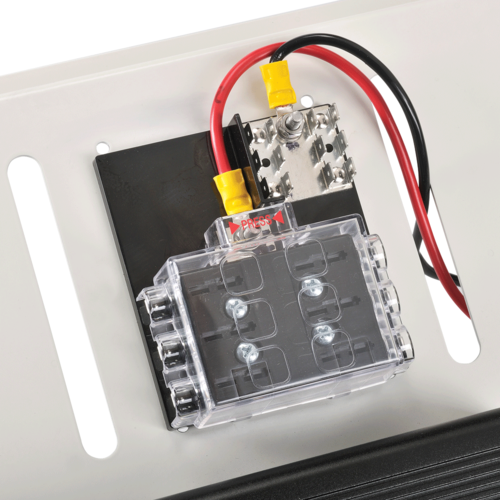

Fuse box
6-way standard ATS blade fuse block, pre-wired with single grounding and power-in terminals. Rated to 25A per circuit

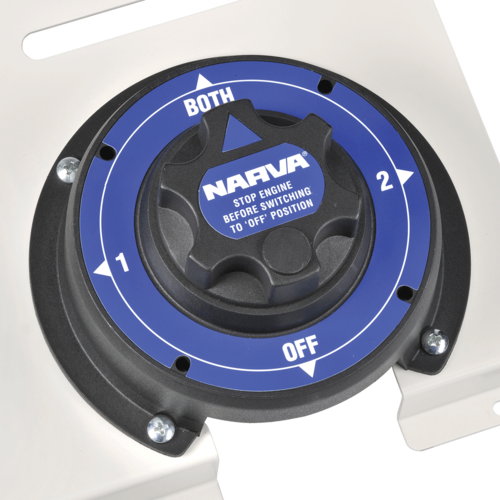

Battery master switch
A heavy-duty 4 position battery master switch with rotary style turn dial. 500A at 12V for 5 minutes or 310A continuous max load

Specifications

240v charging (mains/generator)
CHARGER TYPE: 7-STAGE AUTOMATIC
INPUT: 240VAC, 50HZ, 110W
OUTPUT: 12V
OUTPUT CURRENT: 1, 2, 4 + 7A
BATTERY SUPPORT: GEL, AGM, WET + CALCIUM

Solar Controller
CHARGE TYPE: 4-STAGE AUTOMATIC
INPUT: 12 OR 24V SOLAR PANEL
MAX INPUT: 50V DC, 20A
MAX LOAD: 20A
BATTERY SUPPORT: GEL, AGM + WET

Battery Master Switch
LOAD: 500A for 5mins/310A continuous at 12v

Fuse Block
LOAD: 25a per circuit, 150A max per block at 12v
CIRCUITS: 6-Way ATS Blade fuses
