12V 35A Power Management Board

12V 35A Power Management Board
12V 35A Power Management Board. The ideal power management solution for camper trailer, RV, Bach, Shed, Garage and all those looking for a pre-built power board that utilises the latest technology. Utilising the latest range of premium ‘Intelli’ power management equipment, these 35 Amp power boards are a sophisticated and complete system that is ideal for caravan and motor home applications. Pre-built, these all-in-one units enable quick and easy installation.

Click image for more details.
Price:
NZ$ 2,299.99 including GST
TBCICB3500
In Stock
10-21 business days from date of order
Purchase Qty:


This unit is also solar ready (up to 385W). To view solar panels click HERE


FULL MANUAL ACCOMPANIES THIS PRODUCT

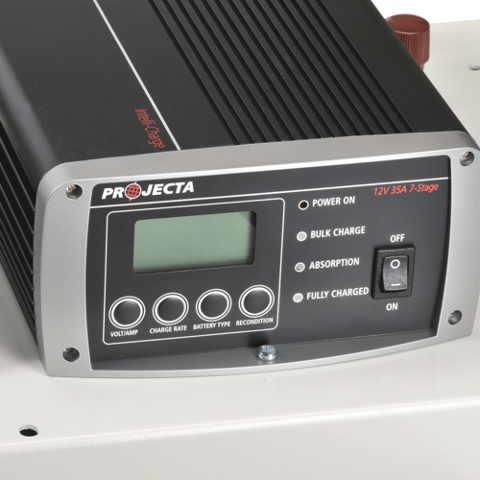

7 stage charger
A sophisticated 7A automatic charger that features multi-chemistry selection and adjustable output to match your battery type

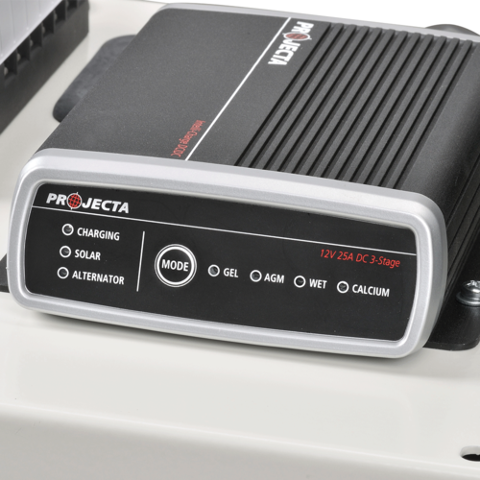

DC/solar controller
Advanced battery charger that utilises both solar and the tow vehicle’s power to deliver a comprehensive 3 stage charge

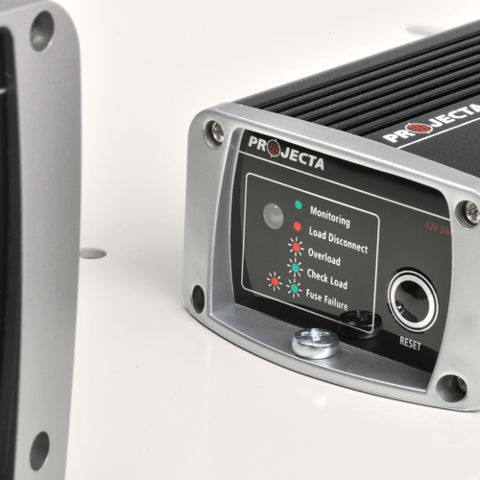

Low voltage disconnect
A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge

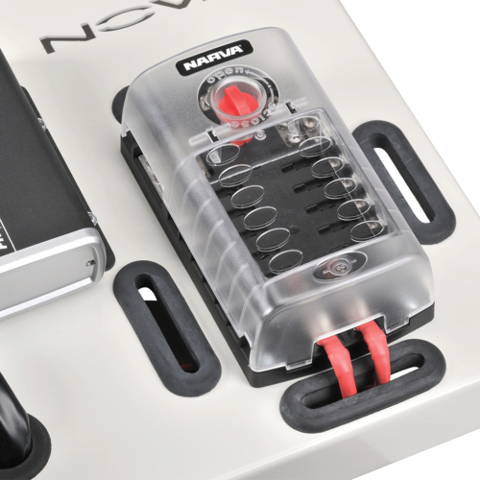

Fuse distribution box
A 12-way standard ATS blade fuse/circuit breaker block with single grounding and dual power inputs

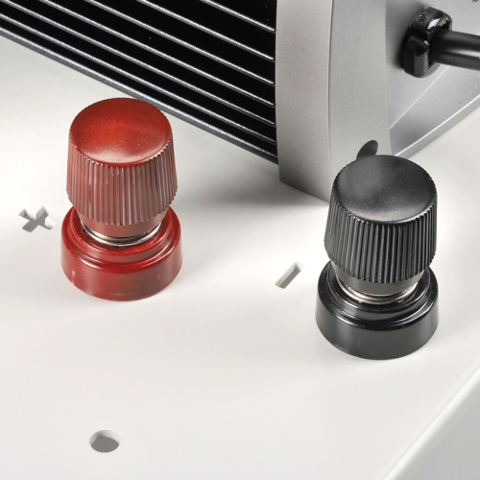

Direct battery connection
Heavy-duty positive and negative terminal posts allow for quick and direction connection to the batteries

240v charging (mains/generator)
CHARGER TYPE: 7-STAGE AUTOMATIC
INPUT: 240VAC, 50HZ, 792W
OUTPUT: 12V
OUTPUT CURRENT: 2, 8, 16, 35A
BATTERY SUPPORT: GEL, AGM, WET + CALCIUM

Solar + DC 12V Charging
CHARGE TYPE: 3-STAGE
ALTERNATOR INPUT: 9-32VDC
MAX SOLAR INPUT: 23VDC, 385W
ALTERNATOR TYPE: Smart + Conventional
BATTERY SUPPORT: GEL, AGM, WET + calcium

LVD CONTROL (Low Voltage Disconnect Feature)
INPUT VOLTAGE: 10-16V
OUTPUT CURRENT: 50A
DISCONNECT VOLTAGE SET POINTS: 10.0V, 10.5V, 11.0V, 12.0V

Fuse Block
LOAD: 30a per circuit, 120A max per block at 12v
CIRCUITS: 6-Way ATS Blade fuses
