The central switch panel can be mounted anywhere and allows remote operation of water pump, lighting and appliances, plus a master switch and night mode. Bedroom lighting switch panels enable light and dimming control from the comfort of your bed. Bluetooth connectivity means you can control and monitor your power system and appliances from inside or outside using the smart phone app - great for outdoor light switching.
Voltage Sensitive Relay engages & disengages with engine |
20A Charger, 35A Power Supply |
Wago Terminals for easy wiring |
Manual Battery Switch connection for remote & local operation |
Centralised switch panel |
Bedroom switch x2 |
Wiring specific cables |
MPPT Solar Input |
Water Level & Pump Control |

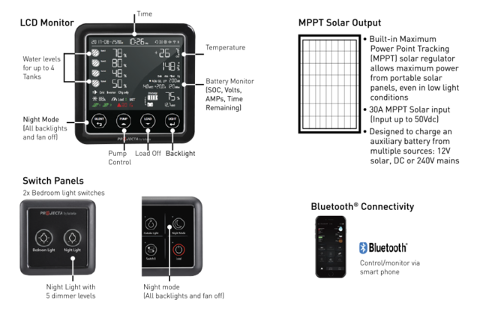

LCD MONITOR |
MPPT SOLAR OUTPUT |
SWITCH PANELS |
BLUETOOTH® CONNECTIVITY |
DOWNLOADS:
TBC-PM400 WIRING UNIT DIMENSIONS
266mm (L) x 165mm (W) x 129mm (H)
SPECIFICATIONS
12V 20A Charger
35A Power Supply
30A MPPT Solar
100A DC VSR
11 Fused Outputs
LCD/Bluetooth® Control
Remote Switch Panels
TBC-PM400 ACCESSORIES & SPARES
PMBEX-2 - 2m Extension Cable for Battery Sensor
PMBEX-4 - 4m Extension Cable for Battery Sensor
PMSWEX-2 - 2m Ext. Cable for Panel Switch, LED and LCD Monitor
PMSWEX-4 - 4m Ext. Cable for Panel Switch, LED and LCD Monitor
PMWS200 - 200mm Water Sensor with 4m Cable
PMWEX-4 - 4m Extension Cable for Water Sensor
COMPONENT LIST
PM400 - 12V 20A Charger & 35 Amp Power Supply, 30A MPPT Solar Controller, Dimmable Lights
PMLCD-BT - LCD Display with Bluetooth to Suit PM435 & PM335
PMLCDC - 5m Cable to Suit LCD Screen
PM4SW10 - 10 Position Switch Panel
PM4Y - CY Connection to Suit PM4SW10C & PM4TS
PM4SW10C - 4.5m Cable to Suit 10 Position Switch Panel (PM4SW10)
PM4SW2 - 2 Position Switch Panel
PM4SW2Y - Y Connection 0.5m Cable for 2 Position Switch Panel (PM4SW2)
PMSWEX-4 - 4m Extension Cable for Switch Panel, LED and LCD Monitor
PM4TS - Temperature Sensor w/ 5m Cable to Suit PM400
PMBS - Battery Sensor with 3m of Cable
PMAC - AC Power Cord, 1.5m
SMARTPHONE APP visit:
http://download.tbbpower.com/app/projecta/index.html
COMPREHENSIVE INSTRUCTION MANUAL INCLUDED WITH YOUR PURCHASE
