PC400 12 volt 4amp Battery Charger

Name: PC400 12 volt 4amp Battery Charger
Brand: The Battery Cell
SKU: PC400
Price: 219.00 NZD
Availability: InStock

> Home > FULL BATTERY RANGE > BATTERY RELATED PRODUCT > BATTERY CHARGERS > Projecta Battery Chargers > PC400 12 volt 4amp Battery Charger

12 volt 4amp Battery Charger. Battery Charger, Ideal for the home professional wanting a charger for a range of charging applications, eg. motorbike, jet ski, small passenger vehicles.

6 stage battery charger + Maintainer, adjustable output -does Calcium Tech Batteries.

INPUT: 240VAC, 50Hz, 132W
OUTPUT: 12V
OUTPUT CURRENT: 1, 2, 4A
MINIMUM START VOLTAGE: 3.0V
BACK DRAIN: 1mA
APPROVALS: Electrical Safety, EMC

Click on image for more options.

Price:

NZ$ 219.00 including GST

or four payments of $54.75 with
Learn More

UOM:

each

Product Code:

PC400

Stock Status:

In Stock

Availability:

9999

Features
Specifications
Product Enquiry
Associated Items

Adjustable Output

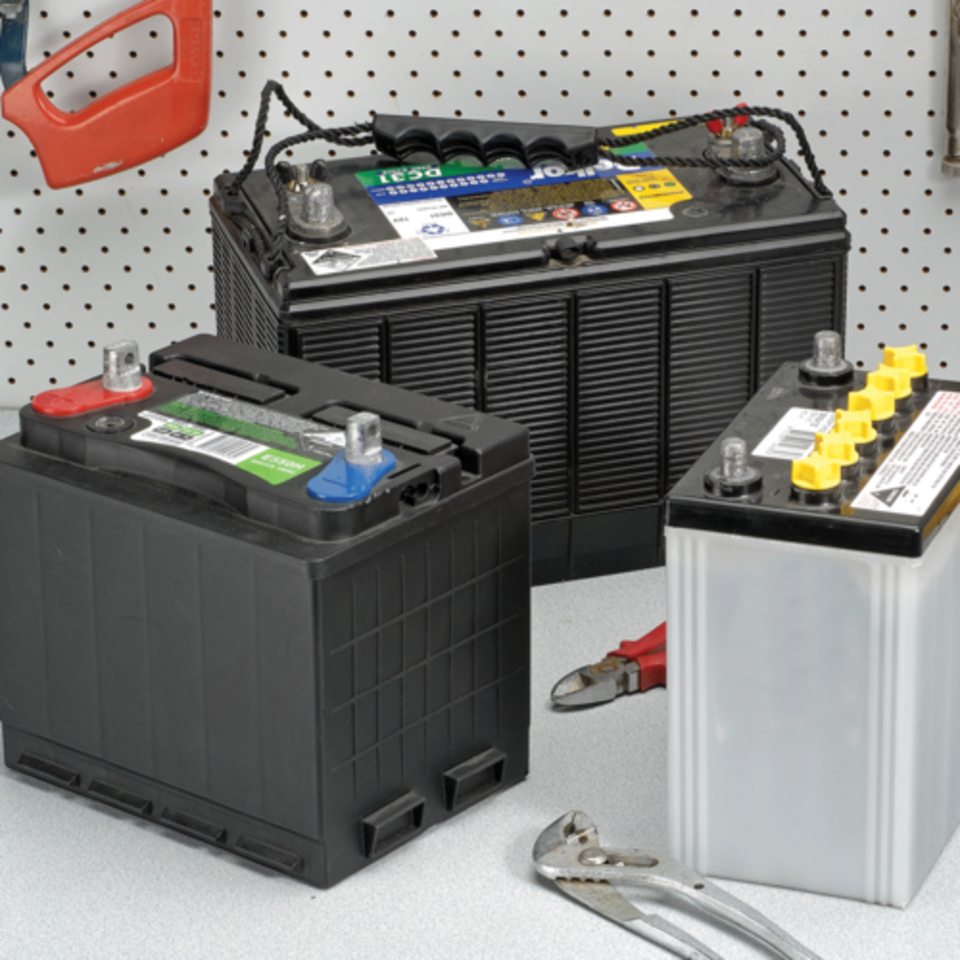

Suitable for a wide range of different size batteries

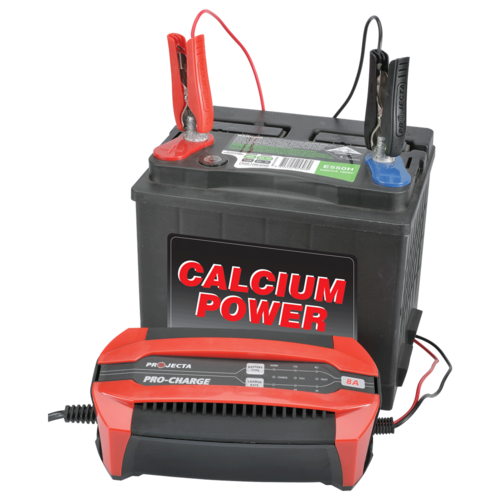

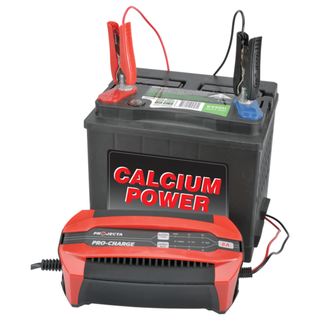

Calcium Mode
Adjusts the charging profile to suit calcium batteries

Rejuvenation Mode
Revitalises tired batteries, increasing battery life and performance (subject to battery condition)

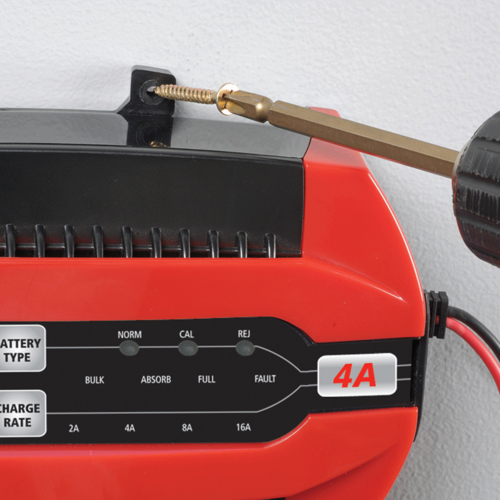

Side Mounting Wings
Optional mounting wings for permanent installation

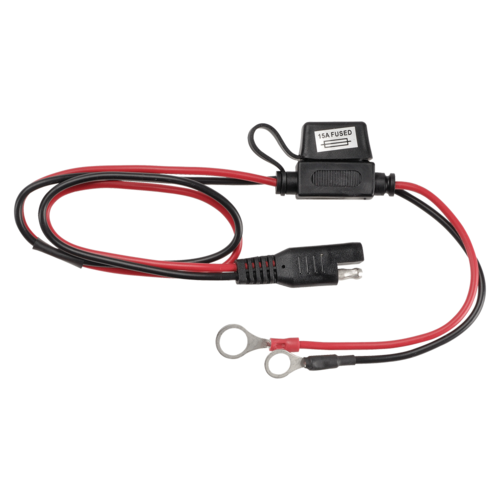

Fused Wiring Harness

0.6m harness allows permanent connection and features polarity protection

PDF MANUAL DATA FOR FULL RANGE OF THESE STYLE CHARGERS HERE

SPECIFICATIONS

TYPE		6 Stage Battery Charger
INPUT		240VAC, 50Hz, 132W
OUTPUT		12V
OUTPUT CURRENT		1, 2, 4A
MINIMUM START VOLTAGE		3.0V
BACK DRAIN		1mA
APPROVALS		Electrical Safety, EMC

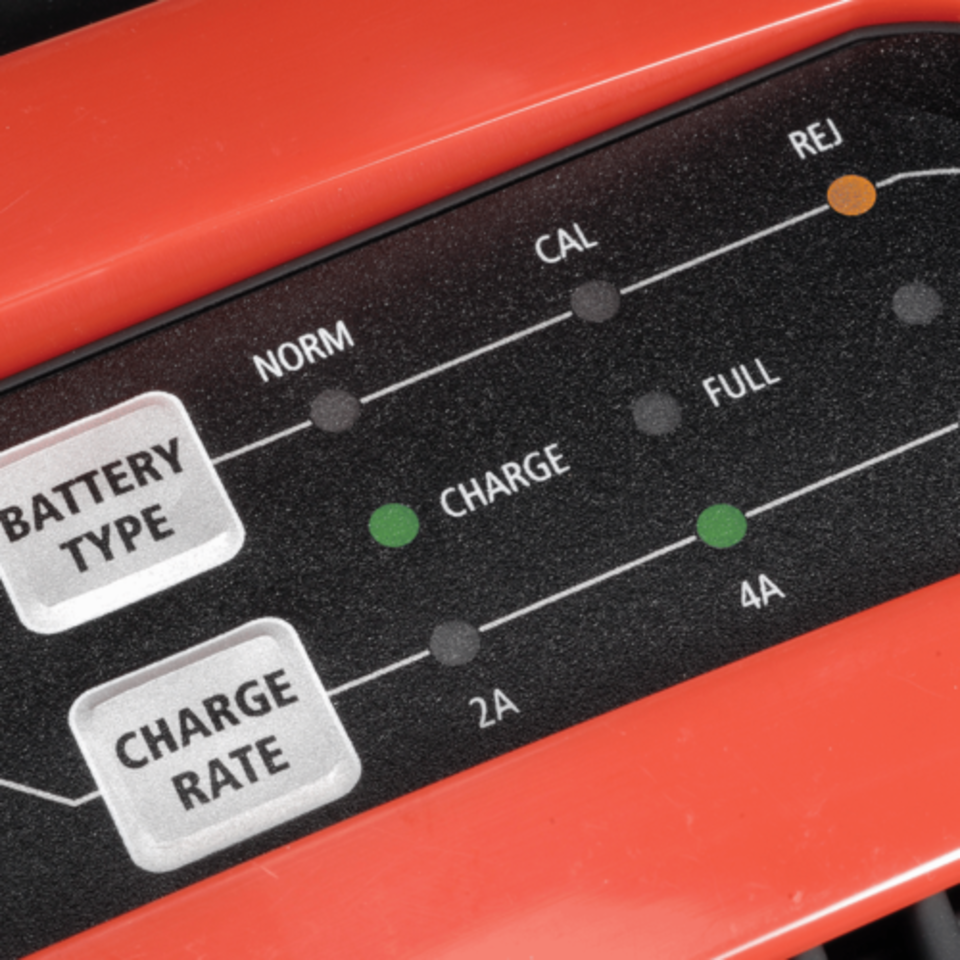

L.E.D. CHARGE INDICATION
BLUE LIGHT ON		Bulk and absorption charging
GREEN LIGHT ON		Fully charged and maintaining, no need to turn off
AMBER LIGHT ON		Rejuvenation process occurring
RED LIGHT ON		Indicates faulty battery
BATTERY CHARGE TIMES
PC400	VOLTAGE	BATTERY SIZE	CHARGE TIME
AUTOMOTIVE	12V	40–480CCA	7–24 hrs
MARINE	12V	55–650MCA	7–24 hrs
DEEP CYCLE	24V	7–80Ah	7–24 hrs
