TYPE 6 Stage Battery Charger
INPUT 240VAC, 50Hz, 600W
OUTPUT 12V
OUTPUT CURRENT 2, 4, 12, 21A
MINIMUM START VOLTAGE 3.0V
BACK DRAIN 1mA
APPROVALS Electrical Safety, EMC
Click image for more detail
or four payments of $107.00
with
Learn More
Features
Adjustable Output
Suitable for a wide range of different size batteries

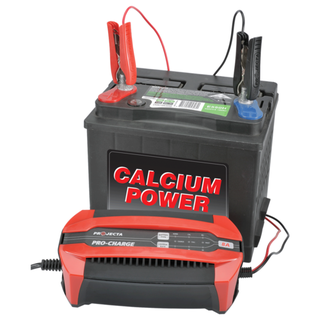

Calcium Mode
Adjusts the charging profile to suit calcium batteries
Rejuvenation Mode
Revitalises tired batteries, increasing battery life and performance (subject to battery condition)

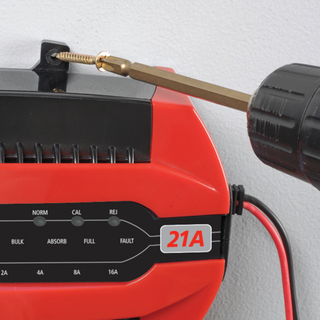

Side Mounting Wings
Optional mounting wings for permanent installation
Safer Charging
Spark free and polarity protected
PDF MANUAL DATA FOR FULL RANGE OF THESE STYLE CHARGERS HERE
Specifications
| SPECIFICATIONS | |||
|---|---|---|---|
|
TYPE |
6 Stage Battery Charger |
||
|
INPUT |
240VAC, 50Hz, 600W |
||
|
OUTPUT |
12V |
||
|
OUTPUT CURRENT |
2, 4, 12, 21A |
||
|
MINIMUM START VOLTAGE |
3.0V |
||
|
BACK DRAIN |
1mA |
||
|
APPROVALS |
Electrical Safety, EMC |
||

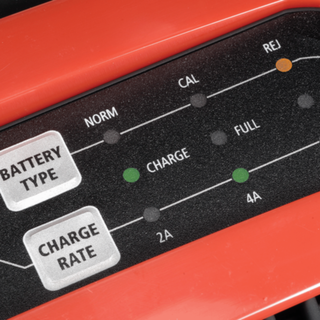

| L.E.D. CHARGE INDICATION | |||
|
BLUE LIGHT ON |
Bulk and absorption charging |
||
|
GREEN LIGHT ON |
Fully charged and maintaining, |
||
|
AMBER LIGHT ON |
Rejuvenation process occurring |
||
|
RED LIGHT ON |
Indicates faulty battery |
||

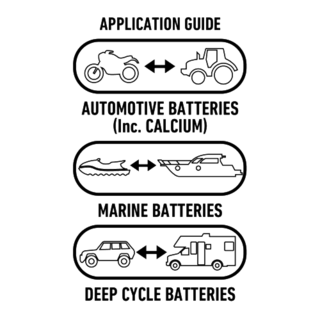

| BATTERY CHARGE TIMES | |||
|
PC2100 |
VOLTAGE |
BATTERY SIZE |
CHARGE TIME |
|
AUTOMOTIVE |
12V |
80–2500CCA |
7–24 hrs |
|
MARINE |
12V |
110–3500MCA |
7–24 hrs |
|
DEEP CYCLE |
12V |
14–420Ah |
7–24 hrs |
