A LiFePO4 battery that weighs less than half of its Lead Acid counterpart.
' 12.8V 150Ah
' Next Generation Concept
' Advanced Battery Management System
' Several Times the Life Cycle of Equivalent Lead Acid Battery
Lithium Batteries require Lithium Battery chargers
Click image for more options.
Information
The next generation of power storage is here! These LiFePO4 batteries weigh less than half of their Lead Acid counterparts. They may look fairly similar to lead acid batteries, but internally they’re a totally different, next generation concept. They’re actually made up of regular prismatic LiFePO4 cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.
Features
This 150Ah model can provide continuous current up to 50A with peaks of 100A. Absolutely perfect for portable power, and replacement of similar capacity lead acid / AGM battery.
- Much lighter than Lead Acid and AGM Batteries
- Robust LiFePO4 Cells
- 10+ years life span
- 1500+ cycles (>80% capacity)
Specifications
Cut-Off Voltage: 10V approx.
Charge Type: Constant Current / Constant Voltage
Normal Current: 50A
Internal Cells: prismatic LiFePO4
Operating Temperature: 0-45°C (60°C max discharging
Operating Humidity: RH < 85%
Storage Temperature: 0-40°C (15-25°C recommended)
Storage Humidity: RH < 50%
DC Voltage : 12.8V
Length : 483.0mm
Width : 170.0mm
Height : 235.0mm
Weight : 19.5kg
Standard Recharge Current : 30A
Fast Recharge Current : 100.0A
Battery Chemical Composition : Lithium Ferrous Phosphate (LiFePO4)
Amp Hour Rating : 150.0mAh
20 Hour Capacity : 125.0Ah
Internal Resistance : 30.0mΩ

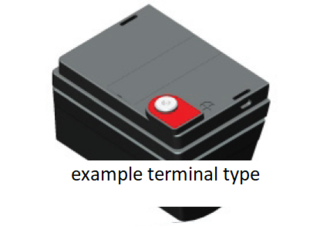

Terminals are bolt-in M8 size
