Weighs only 23.5KG with dimensions of 552 x 240 x 218mm (8D) and popular M8 bolt terminals for easy connection.
Smart Battery Management with built-in Bluetooth app, available for Android and Apple
Other Collection locations available for this product are:
Whangarei (Central), Auckland (Albany), Auckland (Mangere), Hamilton (Burbush), Tauranga (Mt. Maunganui), Pamlerston North (Takaro), Wellington (Petone), Wellington (Seaview), Nelson (Central), Christchurch (Yaldhurst), Dunedin (Central)
YOU CAN ONLY COLLECT THIS ITEM FROM THE OTHER LOCATIONS if you order it separately from other product.
Information

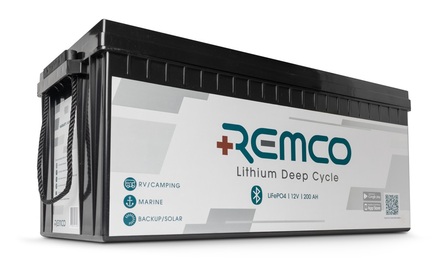

Developed and manufactured with quality in mind. These batteries use the highest quality A-grade lithium cells, so you can feel confident.
Features
FEATURES
Smart Battery Management with built-in Bluetooth app, available for Android and Apple, provides real-time information about your battery, ensuring safe operation and maximum service life.
Light Weight vs traditional batteries
3000+ recharge cycles up to 5 times more compared to AGM
Less maintenance and no sulfation
100% Amp hour capacity available
Faster recharge vs traditional batteries
Built-in Battery Management System (BMS)
Connect up to 48V in series or 4 batteries in parallel
FAST CHARGING and we "still" recommend Lithium Battery Chargers for Lithium Batteries
Specifications
ELECTRICAL PERFORMANCE
Nominal Voltage 12.8 V
Nominal Capacity 200 Ah
Capacity @ 26.4A 300 min
Energy 2560 Wh
Resistance ≤20 mΩ @ 50% SOC
Self Discharge <3% / Month
Cells Prismatic Cell 100Ah
CHARGE PERFORMANCE
Recommended Charge Current 20 A
Max Charge Current 50 A
Recommended Charge Voltage 14.6 V
Charge Cut-Off Voltage <15.2 V (0.5 ~ 1.5 s)
Reconnect Voltage >14.4 V
Balancing Voltage <14 V
Maximum Batteries in Series 4
Maximum Batteries in Parallel 4
MECHANICAL PERFORMANCE
Dimension (L x W x H) 522 x 240 x 218 mm
Approx. Weight 23.5 kg
Terminal Type M8
Terminal Torque 80 ~ 100 in-lbs (9 ~ 11 N-m)
Bluetooth Yes
Case Material ABS
Enclosure Protection IP65
DISCHARGE PERFORMANCE
Continuous Discharge Current 50 A
Maximum contiuous Discharge Current 150 A
Peak Discharge Cut-Off Current 450 A (5 ~15 ms)
Recommended Low Voltage Disconnect 10 V
Discharge Cut-Off Voltage 8.4 V (50 ~ 150 ms)
Reconnect Voltage 10 V
Short Circuit Protection 200 ~ 600 µs
TEMPERATURE PERFORMANCE
Discharge Temperature -4 ~ 140 ºF (-20 ~ 60 ºC)
Charge Temperature 32 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature 23 ~ 95 ºF (-5 ~ 35 ºC)
High Temperature Cut-Off 149 ºF (65 ºC)
Reconnect Temperature 118 ºF (48 ºC)
COMPLIANCE
Certifications CE UN38.3
UL1642 & IEC62133
Shipping Classification UN 3480, CLASS 9
SPECIFICATIONS in PDF for download [HERE]
