D34 Optima Battery Yellow Top Start/Cycle 12v

Name: D34 Optima Battery Yellow Top Start/Cycle 12v
Brand: The Battery Cell
SKU: D34
Price: 629.00 NZD
Availability: BackOrder

> Home > FULL BATTERY RANGE > optima batteries USA > D34 Optima Battery Yellow Top Start/Cycle 12v

12v Deep-cycling and cranking power
Up to 2 times longer life PERFORMANCE, More than 15 times the vibration resistance, Virtually spillproof, mountable in, virtually any position, Maintenance-free, Faster recharging, Optimal starting power, 300+ discharge/recharge cycles

Other Collection locations available for this product are:
Whangarei (Central), Auckland (Albany), Auckland (Mangere), Hamilton (Burbush), Tauranga (Mt. Maunganui), Pamlerston North (Takaro), Wellington (Petone), Wellington (Seaview), Nelson (Central), Christchurch (Yaldhurst), Dunedin (Central)
YOU CAN ONLY COLLECT THIS ITEM FROM THE OTHER LOCATIONS if you order it separately from other product.

RRP:

NZ$ 797.00

Price:

NZ$ 629.00 including GST

or four payments of $157.25 with
Learn More

UOM:

ea

Product Code:

D34

Stock Status:

Out Of Stock

Availability:

Back orders accepted if out of stock 4-6 weeks

Information
Features
Specifications
Product Enquiry
Associated Items

OPTIMA YELLOWTOP D34 Ultra high-performance SPIRALCELL TECHNOLOGY AGM (absorbent glass mat) dual-purpose deep-cycle and starting battery. OPTIMA YELLOWTOP batteries have three times the cycling capability (rechargeability) with ultimate cranking power for your auto, car or truck to outperform traditional batteries. Perfect for powering heavy electrical loads, including winches, audio systems, inverters, and other demanding vehicle accessories and electronics. Lower internal resistance provides more efficient power output and faster recharges.

The OPTIMA model number for this battery is D34. If you are replacing an OPTIMA battery you already have, this model is the same as batteries marked 8012-021, 9012-021, 27992, SC34DA, N9934YEL or YEL34 and D34/78

Performance Data
Cold Cranking Amps:	750
Cranking Amps:	870
Nominal Voltage:	12 volts
Open Circuit Voltage (fully charged):	13.1 volts
Internal Resistance (fully charged):	0.0028 ohms
Capacity:	55 Ah (C/20)
Reserve Capacity:	BCI: 120 minutes (25 amp discharge, 80°F (26.7°C), to 10.5 volts cut-off)

Physical Characteristics
Plate Design:	High purity lead-tin alloy. Wound cell configuration utilizing proprietary SPIRALCELL TECHNOLOGY.
Electrolyte:	Sulfuric acid, H₂SO₄
Case:	Polypropylene
Case Color:	Light Gray
Cover Color:	“OPTIMA“ Yellow
Group Size:	BCI: 34

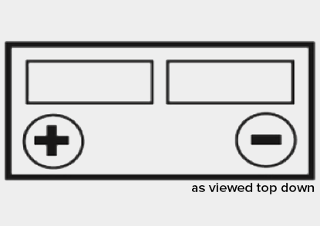

Post Type:	SAE Post
Weight:	42.9 lb
Length:	267mm
Width:	172mm
Height:	199mm

Power
CCA (BCI 0°F):	750 amps
MCA (BCI 32°F):	870 amps

Recommended Charging
The following charging methods are recommended to ensure a long battery life: (Always use a voltage regulated charger with voltage limits set as described below.) Model: D34 These batteries are designed for starting and deep cycling applications and for use in vehicles with large accessory loads.

Recommended Charging Information
Alternator:	13.65 to 15.0 volts
Battery Charger:	13.8 to 15.0 volts; 10 amps maximum; 6-12 hours approximate
Float Charge:	13.2 to 13.8 volts; 1 amp maximum (indefinite time at lower voltages)
Rapid Recharge (Constant voltage charger):	Maximum voltage 15.6 volts. No current limit as long as battery temperature remains below 51.7°C. Charge until current drops below 1 amp.
Cyclic or Series String Applications::	14.7 volts. No current limit as long as battery temperature remains below 51.7°C. When current falls below 1 amp, finish with 2 amp constant current for 1 hour. All limits must be strictly adhered to.
