Information

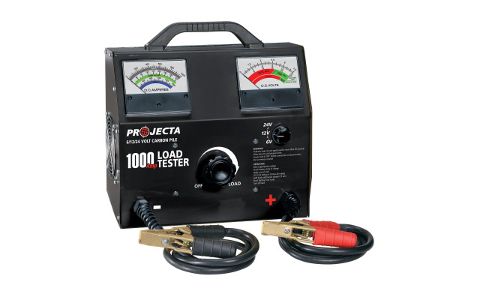

An incredibly durable, quality constructed load tester. Capable of performing variable tests on 6, 12 or 24V batteries rated as high as 2000CCA.
Features

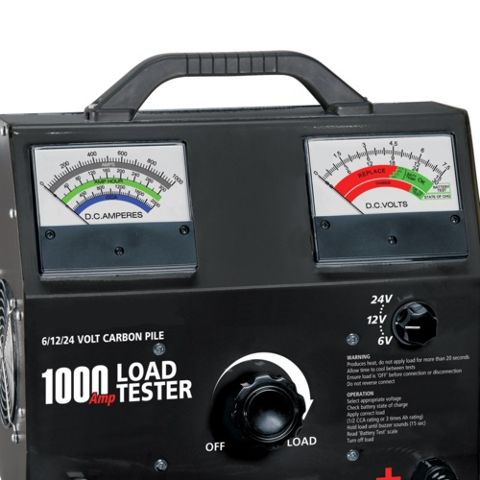

Dual meters
Large and easy to read screens detail test results simultaneously

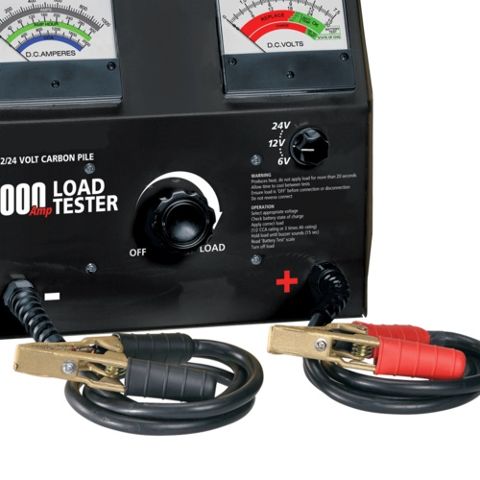

Heavy-duty clamps
Solid die cast brass battery clamps for excellent conductivity
Battery test
Adjustable 0–1000A load provides correct tests for 6/12/24V batteries up to 2000CCA or 320Ah

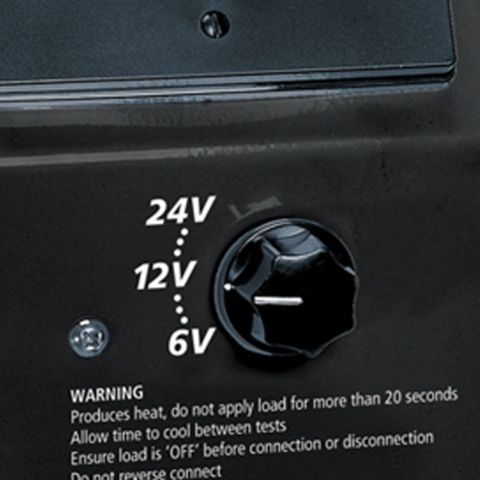

Voltage selection
Suitable for use with 6, 12 and 24 Volt batteries via simple turn dial
Specifications
TESTS Volts (0–30VDC)
6/12/24V lead acid batteries
BATTERY RANGE Up to 2000CCA (320Ah)
TEST LOAD Adjustable carbon pile 0–1000 Amps
MAX LOAD ON TIME 20 seconds
RECOMMENDED COOL DOWN TIME 2 minutes
TEST TIME ALERT Buzzer sounds after 15 seconds
CABLE LENGTH 1400mm
SIZE 350mm x 355mm x 175mm
WEIGHT 8.4kg
PRODUCT MANUAL IN PDF HERE
