12V 75Ah Lithium Battery Deep Cycle LiFePO4 Recreational

12V 75Ah Lithium Battery Deep Cycle LiFePO4 Recreational

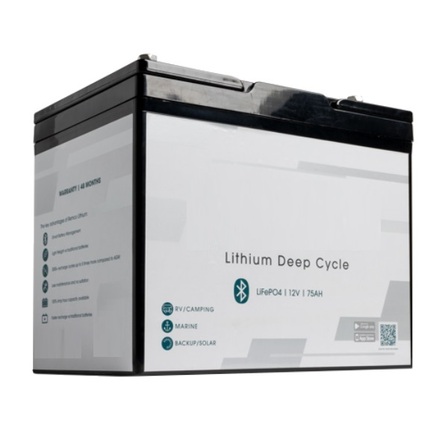

12V 75Ah LiFePO4 Lithium Deep Cycle Battery
Recreational Lithium Battery 12v 75Ah
Weighs only 9.5KG with dimensions of 260Lmm x 172Wmm x 209Hmm (GRP24) and popular M8 bolt terminals for easy connection.
Smart Battery Management with built-in Bluetooth app, available for Android and Apple

Other Collection locations available for this product are:
Whangarei (Central), Auckland (Albany), Auckland (Mangere), Hamilton (Burbush), Tauranga (Mt. Maunganui), Pamlerston North (Takaro), Wellington (Petone), Wellington (Seaview), Nelson (Central), Christchurch (Yaldhurst), Dunedin (Central)
Contact us to arrange OR put the desired collection location in the SPECIAL INSTRUCTIONS when making your purchase.
Price:
NZ$ 1,449.90 including GST


or four payments of $362.48 with
Afterpay Payment Offer Learn More

TBCRM1275LFP-BT
In Stock
Purchase Qty:


Developed and manufactured with quality in mind. These batteries use the highest quality A-grade lithium cells, so you can feel confident.

Smart Battery Management with built-in Bluetooth app, available for Android and Apple, provides real-time information about your battery, ensuring safe operation and maximum service life.

Light Weight vs traditional batteries
3000+ recharge cycles up to 5 times more compared to AGM
Less maintenance and no sulfation
100% Amp hour capacity available
Faster recharge vs traditional batteries
Built-in Battery Management System (BMS)
Connect up to 48V in series or 4 batteries in parallel

FAST CHARGING and we "still" recommend Lithium Battery Chargers for Lithium Batteries

ELECTRICAL PERFORMANCE
Nominal Voltage 12.8 V
Nominal Capacity 78 Ah
Capacity @ 15.6A 300 min
Energy 998.4 Wh
Resistance ≤35 mΩ @ 50% SOC
Self Discharge <3% / Month
Cells 32700 6Ah
CHARGE PERFORMANCE
Recommended Charge Current 16 A
Max Charge Current 40 A
Recommended Charge Voltage 14.6 V
Charge Cut-Off Voltage <15.2 V (0.5 ~ 1.5 s)
Reconnect Voltage >14.4 V
Balancing Voltage <14 V
Maximum Batteries in Series 4
Maximum Batteries in Parallel 4
MECHANICAL PERFORMANCE
Dimension (L x W x H) 260 x 172 x 209 mm
Approx. Weight 9.5 kg

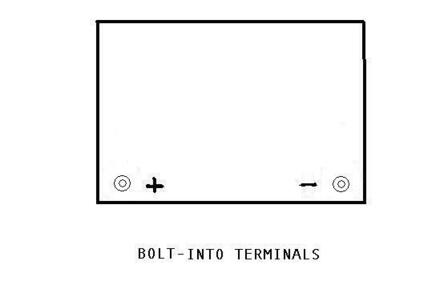

Terminal Type M8
Terminal Torque 80 ~ 100 in-lbs (9 ~ 11 N-m)
Bluetooth Yes
Case Material ABS
Enclosure Protection IP65
DISCHARGE PERFORMANCE
Continuous Discharge Current 50 A
Maximum contiuous Discharge Current 100 A
Peak Discharge Cut-Off Current 300 A (5 ~15 ms)
Recommended Low Voltage Disconnect 10 V
Discharge Cut-Off Voltage 8.4 V (50 ~ 150 ms)
Reconnect Voltage 10 V
Short Circuit Protection 200 ~ 600 µs
TEMPERATURE PERFORMANCE
Discharge Temperature -4 ~ 140 ºF (-20 ~ 60 ºC)
Charge Temperature 32 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature 23 ~ 95 ºF (-5 ~ 35 ºC)
High Temperature Cut-Off 149 ºF (65 ºC)
Reconnect Temperature 118 ºF (48 ºC)
COMPLIANCE
Certifications CE UN38.3 UL1642 & IEC62133
Shipping Classification UN 3480, CLASS 9
