Information

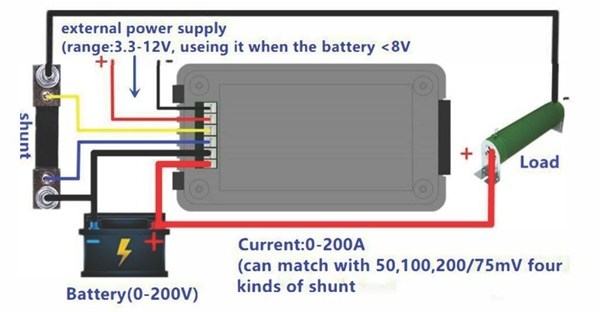

Totally self-contained, so wiring is a breeze, and it’s powered from the DC power you’re monitoring. Suitable for solar systems up to approximately 40kW (must not exceed 200A). Provides details on power, voltage, and current, as well as aggregation of power throughput (which can mean generation or usage depending on your installation) with an easy reset function. Bright blue backlit display provides easy reading in any lighting conditions.
Features
• Real time information

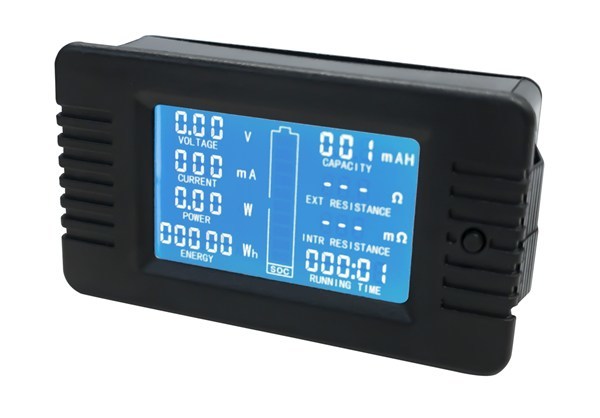

• Large backlit display
• Aggregated energy throughput
• Power Consumption: 0.2W
• Measurement speed: 2 times/s
Specifications
DC Current Accuracy : 1%
Current DC Measuring Range : 200A
DC Voltage Accuracy : 1%
DC Volts Measurement Range : 6.5 - 200V
Width : 91mm
Height : 52mm
Depth : 27mm
Weight : 0.07Kg
