A clever combination of a smart shunt with an informative display and Bluetooth connectivity, the system displays critical primary and secondary battery information. Ideal for camper trailers, caravans, 4WD canopies and boats.
or four payments of $132.25
with
Learn More
Information
Great for Lithium batteries without BMS, and not functional to a specific brand
Features
State of Charge Percentage (SOC). Works as a fuel gauge for the battery.
Communicates directly with the battery.
Ability to control and monitor via Bluetooth, an easy to read display, easy fitment, multi-chemistry compatible (AGM. Gel, Lithium).
Bluetooth App Control, Monitor the battery status via smart phone or tablet with inbuilt intelligent battery monitoring technology.
Shows current in/out of the battery and voltage.

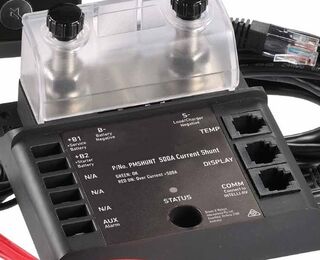

Kit includes shunt, monitor and cables.
Specifications
INPUT VOLTAGE: 7 - 95Vdc
BATTERY CAPACITY: 10-10,000Ah
MAX CURRENT: 500A
TYPE OF BATTERIES SUPPORTED: AGM / GEL / LITHIUM
STAND-BY CURRENT: 36mAh
CONNECTORS: CAN, RS485
MINIMUM VOLTAGE: 7V
INPUT OVER VOLTAGE PROTECTION: 95V
TEMPERATURE SENSOR PROBE: 1540MM
MONITOR CABLE: 5000MM
POWER CABLE: 1570MM
-REVERSE POLARITY PROTECTION

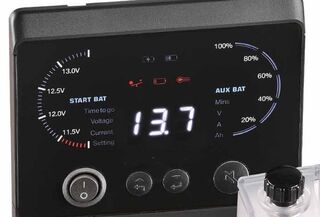

DISPLAY
Time remaining (Full/empty)
Power remaining (AH)
Battery Stae of Health
Battery Temperature
Battery Voltage
Current / state of charge (SOC%)
AC Ouput
Power / Frequency / Voltage / Current
Alarm & Fault indication
