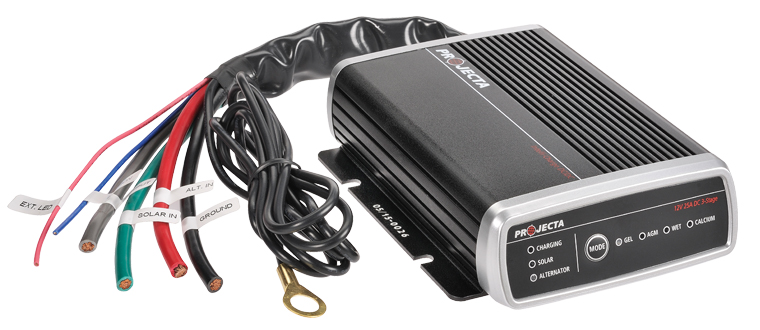

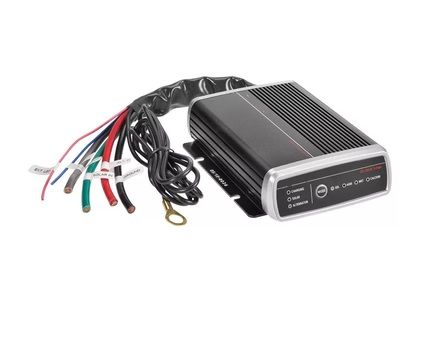

Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger

Features

Dual Charging Modes / Dual Input Operation

Simultaneous dual battery charging from both solar and alternator inputs

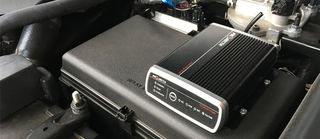

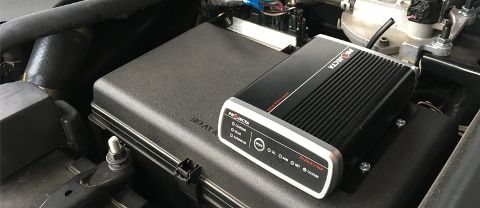

Engine Bay Installation

Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C

Multi-Chemistry

Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel

Installation guide

Caravan installation

Combines your solar and vehicle’s power to deliver a comprehensive multi-stage charge ensuring longer battery life and preformance.

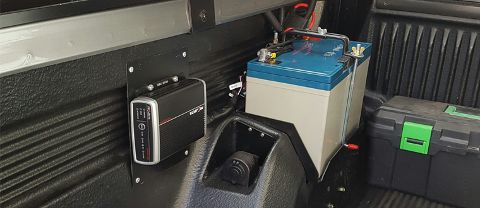

4WD installation

A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators.

Specifications

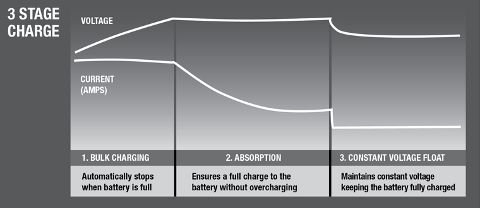

CHARGE TYPE 3 Stage

ALTERNATOR INPUT VOLTAGE 9-32Vdc

MAX SOLAR INPUT 28Vdc, 385W

OUTPUT CURRENT
Input 9-11Vdc 20A,
Input 11-32Vdc 25A

BACK DRAIN ON AUX BATTERY 9.5-10.5mA

CHARGER CONTROL
Gel: 14.1V,
AGM: 14.4V
Wet: 14.7V,
Calcium: 15.4V

BATTERY CAPACITY 75-300Ah

BATTERIES SUPPORTED Gel, AGM, Wet & Calcium

SMART ALTERNATOR
12V: Turn On: 12.2-20V
24V: Turn On: 24.4-32V Turn Off: <11.9V
Turn Off: <24V
CONVENTIONAL ALTERNATOR
12V: Turn On: 13.4-20V
24V: Turn On: 26.8-32V Turn Off: <12.8V
Turn Off: <25.6V

OPERATING TEMPERATURE -10°C to +80°C
