Simultaneous dual battery charging from both solar and alternator inputs (9–32V) with no manual switching required.
or four payments of $116.25
with
Learn More
Information

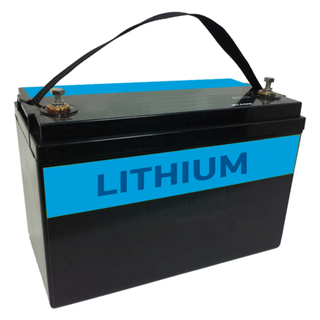

Lithium charging technology
Engineered for use with todays advanced lithium battery technology
Engine bay installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
Dual charging modes
Engineered to work with both smart and conventional alternators
Dual input operation
Simultaneous dual battery charging from both solar and alternator inputs
Total safeguard protection
Over temperature, reverse connection, over/under and spark free protection
Features
INTELLI-CHARGE DC/SOLAR RANGE Features

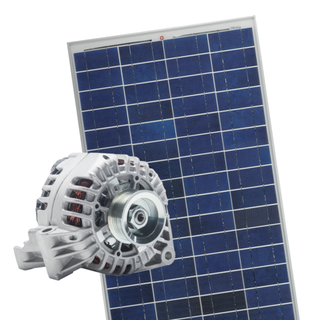

Dual input operation
Simultaneous dual battery charging from both solar and alternator inputs (9–32V) with no manual switching required. The unit prioritises solar charging as its default and automatically adjusts to the alternator if sunlight is insufficient, reducing the power usage placed on the vehicle’s electrical system.

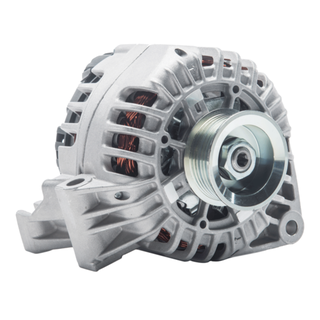

Dual charging modes
Engineered to work with both smart and conventional alternators. The introduction
of smart alternators has resulted in many conventional dual battery systems being ineffective. The advanced switch-mode technology of the IDC range enables greater efficiency, exceeding 94% at typical full load conditions, converting your vehicles alternator power to a more complete charge.
25A solar MPPT
Using sophisticated Maximum Power Point Tracking (MPPT) solar regulator technology, the IDC range of chargers operate as advanced solar controllers, maximising the power generated from the panels to provide a comprehensive and total charge to your auxiliary battery.
Multi-chemistry charging
The IDC range of chargers suit todays different battery technologies, including everyday automotive batteries and the newer Lithium battery technology. For automotive batteries, multi-chemistry technology enables the user to tailor the charging profile to suit the battery type: Gel, AGM, Wet and Calcium batteries.
Installation guide
Caravan installation
Combines your solar and vehicle’s power to deliver a comprehensive multi-stage charge ensuring longer battery life and performance.

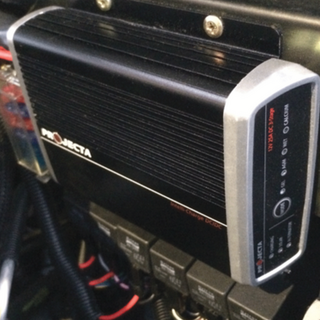

4WD installation
A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators.
Multi-stage charging
Utilising sophisticated electronics, the IDC range of DC/SOLAR chargers provide an advanced multi-stage charging process to produce a safe and comprehensive charge, a must for deep cycle and lithium batteries.
Specifications
| SPECIFICATIONS | |||||
|---|---|---|---|---|---|
|
CHARGE TYPE |
5 Stage |
||||
|
ALTERNATOR INPUT VOLTAGE |
9-32Vdc |
||||
|
MAX SOLAR INPUT |
28Vdc, 360W |
||||
|
OUTPUT CURRENT |
Input 9-11Vdc 20A, |
||||
|
BACK DRAIN ON AUX BATTERY |
9.5-10.5mA |
||||
|
CHARGING PROFILE |
1st Soft Start: 1.25A |
||||
|
BATTERY CAPACITY |
50-250Ah |
||||
|
BATTERIES SUPPORTED |
Lithium iron phosphate |
||||
|
SMART ALTERNATOR |
|
||||
|
CONVENTIONAL ALTERNATOR |
|
||||
|
OPERATING TEMPERATURE |
|||||
