Power-Hub turns your battery into a versatile user friendly option for powering and charging a wide range of accessories and appliances while you are ‘off the grid’. It is the ideal alternative to a conventional dual battery system, giving you the freedom to take power away from your vehicle.
TO VIEW COMPATIBLE COMPONENTS FOR THIS UNIT, CLICK ON ASSOCIATED ITEMS TAB
SOLAR: The Power Hub unit has an anderson plug connection for solar panel install, view the solar section HERE, we have many fold-up panels with Anderson connections as standard, If you are creating your own anderson connection for your Solar -make sure you have a solar controller between the panel/s and the connection on the Power Hub (12v only Solar input)
CHARGERS: The Power Hub has a positive and negative port on it, this can be used for input or output. In this case we recommend using these ports when you require the unit to be charged via a charger. We also recommend the same brand of chargers for this unit, you can view/buy HERE the bigger the rating the faster the charge. And yes, you can use your own if you wish, just make sure it is compatible with the battery you have inside the unit.
INVERTERS: The Power Hub comes with it's own built-in 300w pursinewave inverter and YES we understand alot of you require a higher rated inverter WE HAVE A SOLUTION, remember those positive and negative ports? That's what you can connect your bigger inverter to. AGAIN, we highly recommend the same brand of inverters as the Power Hub, you can view our inverter range HERE
BATTERIES: You can go as small or as big as you like, as long as it fits in the box, obviously the bigger your battery, the longer the unit will last for you between charges. We recommend 12 volt only Deep-cycling batteries of which you can view our LARGE range HERE (this unit is yet to be compatible with Lithium batteries, if you use a lithium battery in the power hub it is at your own risk)
PRODUCT BROCHURE IN PDF HERE
Features

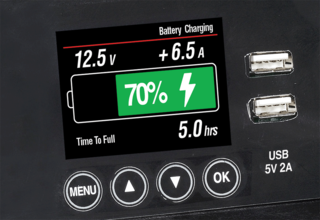

Smart battery gauge
2.4” colour LCD monitor utilises patented ‘self-learning’ technology to provide comprehensive battery status information
10 power outlets
Includes: Merit, 2A USB, cigarette lighter, Engel type, heavy-duty 50A socket, DC terminals & AC outlet with on/off switch
300W inverter
300 Watt pure sine wave inverter for powering sensitive electrical equipment

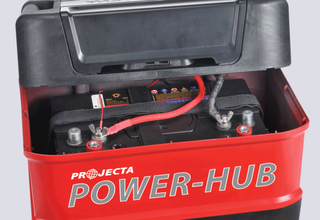

Easy battery fitment
Compatible with a wide range of battery sizes and chemistry types. Simply fit your chosen battery and you’re good to go

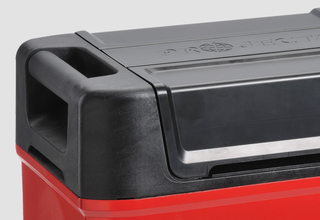

Portable design
Soft touch over moulded carry handles double as sturdy tie down points for secure fitment within vehicle
Specifications
SUITS
Batteries up to N70
BATTERY SIZE
Deep Cycle: 60–140AH
Automotive: 300–800CCA
Marine: 350–950MCA
BATTERY COMPARTMENT (EXCLUDING TERMINAL POSTS)
H: 230mm W: 177mm L: 338mm
(H:245mm including posts)
EXTERNAL SIZE
H: 337mm W: 235mm L: 390mm
OUTLETS
2 x 15A Merit, 2 x 2A USB, 1 x 10A Engel,
1 x DC Terminal, 1 x 50A Heavy-Duty,
2 x 10A Cigarette Lighter Sockets,
1 x 240V AC outlet with on/off switch
SCREEN
2.4” colour LCD
LOW BATTERY & BATTERY HEALTH ALARM
Configurable
MATERIAL
Glass Reinforced Plastic
MANUAL IN PDF HERE
