61085, HEAVY DUTY BATTERY MASTER SWITCH
Disconnects the battery and the alternator or generator field.
Complies with Australian Mining Regulations Standards.
DPST, silver contacts, strong steel plated casing, chrome-plated die-cast alloy lever.
Brass mounting stem, studs and indexing pin.
O-ring sealed for weather resistance, Indexing pinaligns switch and prevents rotation, 6-36 volt multi-voltage
NARVA QUALITY
Disconnects the battery and the alternator or generator field.
Complies with Australian Mining Regulations Standards.
DPST, silver contacts, strong steel plated casing, chrome-plated die-cast alloy lever.
Brass mounting stem, studs and indexing pin.
O-ring sealed for weather resistance, Indexing pinaligns switch and prevents rotation, 6-36 volt multi-voltage
NARVA QUALITY
Information
Large Terminals:
800A at 12v for 15 seconds
400A at 24v for 15 seconds
125A at 12v continuous load max.
Small Terminals:
20A at 12v continuous load max.

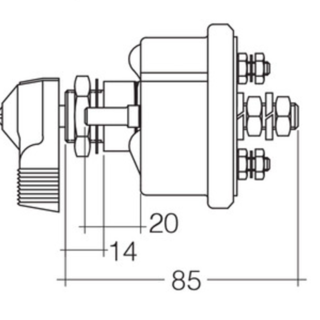

Mounting opening: 19mm dia.
