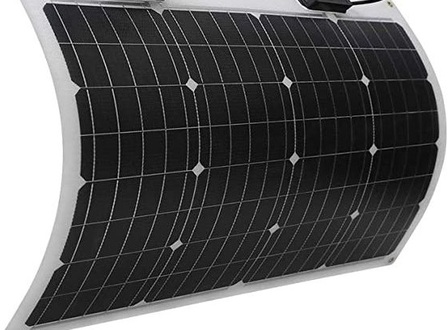

50W 12V Semi Flexible Solar Panel with DF Technology

Features

The DF cell, identified by its 21 bus bars, is also flexible up to 30 degrees. You can mount the panel on a curved surface such as a boat deck or curved rooftop.
Thanks to its lightweight design, 2.5mm thickness, and IP65 weatherproof rating, it is perfect for portable applications as well. The mounting holes allow you to secure it using rope for temporary applications or screws for permanent mounting. The short leads with MC4 PV connectors also make it easy to disconnect.
A blocking diode is built into the panel to prevent discharging a battery at night time, BUT adding a solar charge regulator to charge batteries more effectively.

Specifications

SPECIFICATIONS

• Cell Technology - Monocrystalline
• Number of cells per module -36pcs
• Cell Type - Sunpower mono

• Maximum Power 50W
• Open circuit voltage (V) 22.6V
• Max. power voltage (V) 18.5v
• Short circuit current (A) 3.00A
• Max. power current (A) 2.92A

• Temperature coefficient of Voc (%) -38/°C
• Temperature coefficient of Isc (%) +0.1/°C
• Temperature coefficient of Pm (%) -0.47/°C
• Temperature coefficient of Im (%) +0.1/°C
• Temperature coefficient of Vm (%) -0.38/°C
• Temperature Range -40°C - +80°C

• Dimension of Solar module 660x600x3mm
• Weight 1.3KGs
