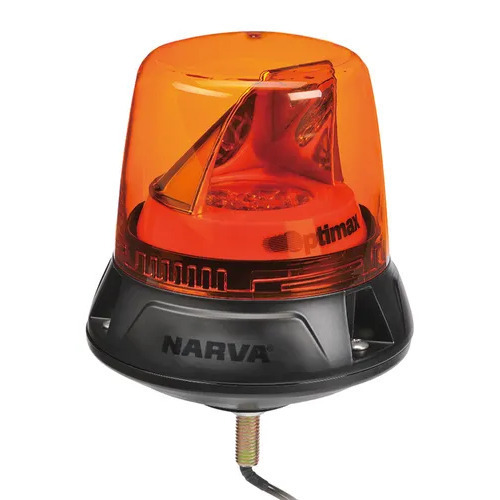

Optimax LED beacons are engineered to produce smooth, highly visible rotating patterns suitable for all civil applications.
INPUT VOLTAGE RANGE 10-33V
CURRENT DRAW 1A at 12V
LEDs 6 x 5 watt high power LEDs
IP RATING IP67
OPERATING TEMPERATURE -30' to 60'
SIZE 170mm (height) x 154mm (diameter)
WEIGHT 330g
BASE TYPE Single bolt mount
ECE 10R-06.22895 (R10)
OTHER SAE J845 Class 1, W3-1
OTHER CISPR Class 3
Information
Optimax LED beacons are engineered to produce smooth, highly visible rotating patterns suitable for all civil applications.
This has been achieved by a proprietary reflector optic to spread the light combined with 6 x 5 watt high power LEDs.
This output ensures Optimax LED Beacons meet Heavy Vehicle Regulation 2013 No.77.
This extreme output also makes the Optimax beacon range as visible even as traditional halogen beacons with 55W (or 70W) globes with a fraction of the current draw.
Features
LONGER LASTING
LED technology ensures no blown globes due to continued use
MORE RELIABLE
Vibration resistant stepper motor & over voltage protection
MORE DURABLE
Diecast aluminium base, virtually unbreakable lens & rated to IP67.
MORE VISIBLE
6 x 5W (30W) LED Output

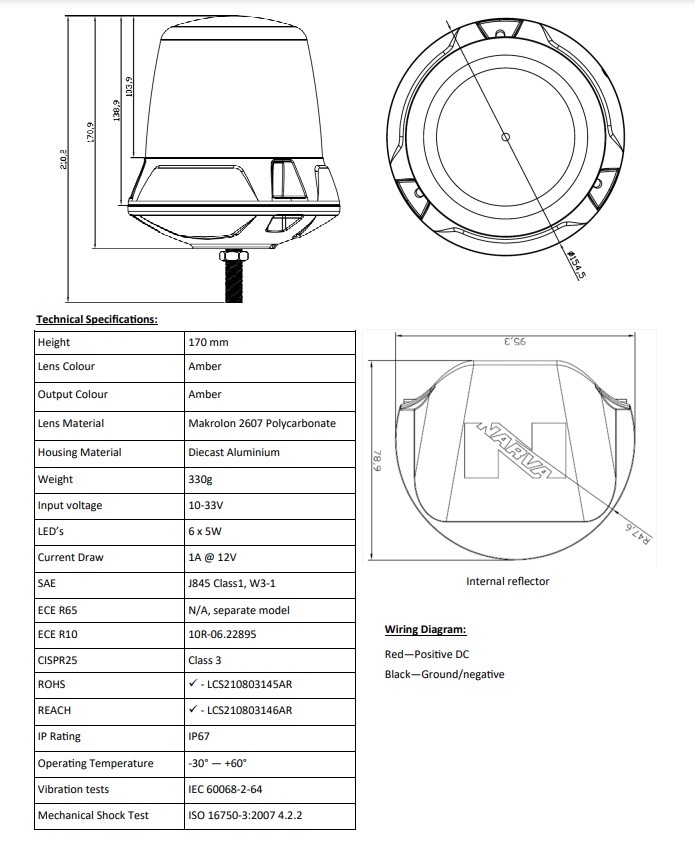

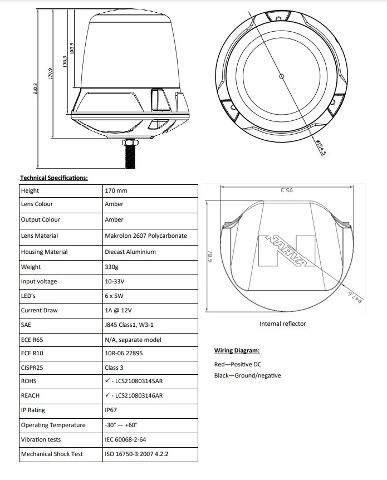

Specifications
INPUT VOLTAGE RANGE 10-33V
CURRENT DRAW 1A at 12V
LEDs 6 x 5 watt high power LEDs
IP RATING IP67
OPERATING TEMPERATURE -30° to 60°
SIZE 170mm (height) x 154mm (diameter)
WEIGHT 330g
BASE TYPE Single bolt mount
ECE 10R-06.22895 (R10)
OTHER SAE J845 Class 1, W3-1
OTHER CISPR Class 3
